Dumb Headlight Question

Timbeaux38 · 06-08-2008, 06:09 PM

Bought a headlight kit for the 03 TXT, and the wiring diagram included was for a battery cart.... Anything special I should know?

StoveBolt · 06-08-2008, 06:44 PM

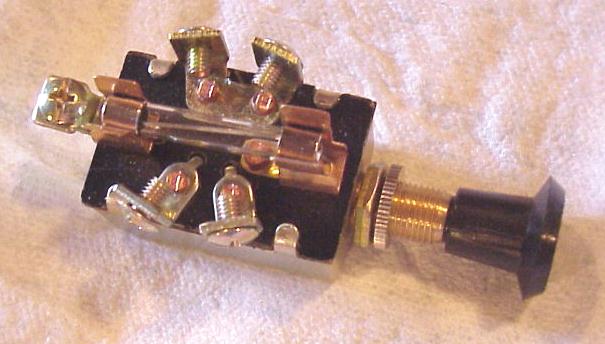

I used a switch like this one from Auto Zone http://www.frontiernet.net/~irishhills/switch.jpg

I installed it next to the choke and wired everything under the cart up to the switch, then a wire from the terminal under the cover next to the battery to power the switch. It's a 3 position switch so you can run parking lights, it also has a built in fuse.

If you notice next to the choke there is a hole in the angle iron body support, I just drilled on through that and through the body for the switch.

06-08-2008, 06:09 PM	#1
Timbeaux38 Derailng a thread somewhe Join Date: Mar 2008 Location: Alabama Posts: 169	Dumb Headlight Question Bought a headlight kit for the 03 TXT, and the wiring diagram included was for a battery cart.... Anything special I should know?

06-08-2008, 06:44 PM	#2
StoveBolt Gone Wild Join Date: Feb 2008 Location: Brooklyn, Michigan "Home of M.I.S." Posts: 3,667	Re: Dumb Headlight Question I used a switch like this one from Auto Zone http://www.frontiernet.net/~irishhills/switch.jpg I installed it next to the choke and wired everything under the cart up to the switch, then a wire from the terminal under the cover next to the battery to power the switch. It's a 3 position switch so you can run parking lights, it also has a built in fuse. If you notice next to the choke there is a hole in the angle iron body support, I just drilled on through that and through the body for the switch.
